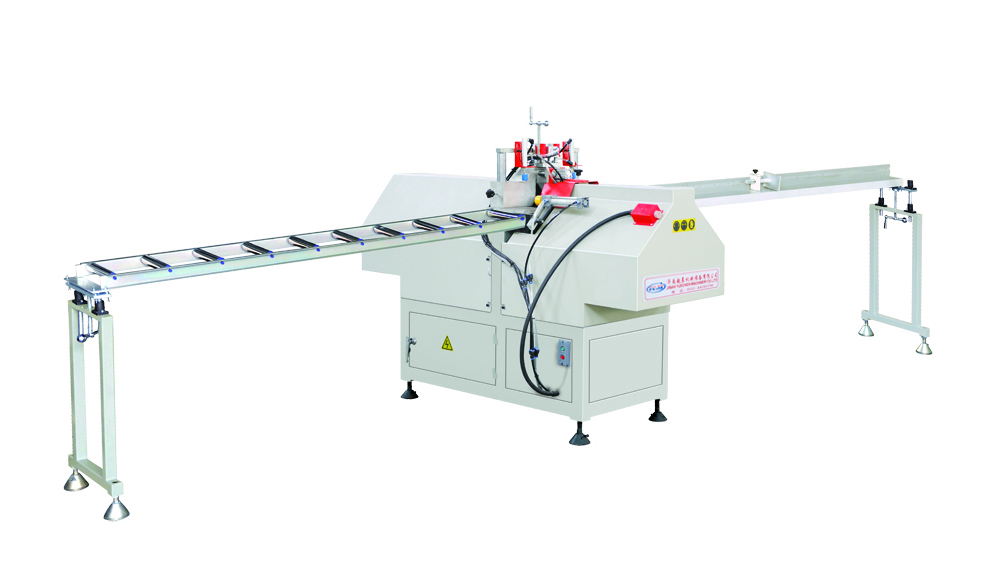

●The machine for PVC mullion profile, when the welding process, the mullion profile is V-shaped cutting head.
●The two cutting saw blades are arranged in a space of 90°, and the clamping is completed at the same time. The cutting of two V-shaped heads has high cutting precision and high production efficiency.
●Horizontal layout, stable movement, high cutting precision.
●Special clamping-lifting device, no material jumping.
●Cutting waste is only generated at the saw cut, and the profile utilization rate is high.
Technical Parameters:
Air pressure 0.4-0.6MPa
Air consumption 80L/min
Power supply 380V/50Hz
Input power 2×1.1Kw
Spindle speed 2800r/min
Cutting height 110mm
Cutting width 120mm
Cutting length 300～1600mm
Dimensions 1900×700×1350mm
